PL SERIES
10A Heavy-Duty Limit Switches
PL-series 2NO2NC SNAP heavy-duty switches feature reinforced PA6 bodies, 10A/500V rating, <10mΩ contacts, >200MΩ insulation, CE-approved, reliable fast-action switching across harsh industrial environments, low-resistance long-life design assured.
Suitable for Industries:
Heavy Machinery Automation
Conveyor Equipment & Bulk Movement Systems
Industrial Presses & Forming Machines
Key Feature
- 10A 500V rated heavy-duty switching performance
- <10mΩ contact resistance for efficient conduction
- 200MΩ insulation withstands 1000V DC testing
- ISO & CE Certified
- Industrial Grade
PL Series
10A Heavy-Duty Limit Switches

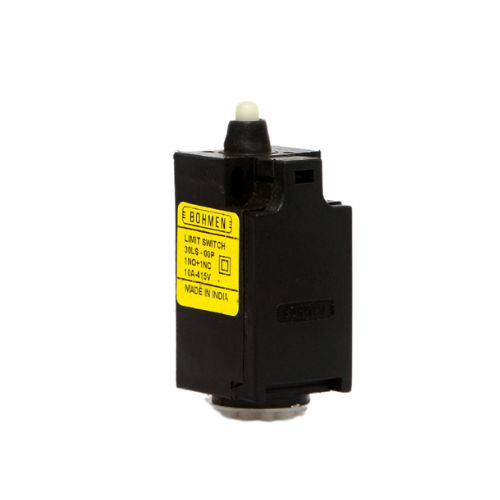

Model No:
CE
Current Rating
415 V
Contact Type
Slow
Plunger
Contact Configuration:
1NO1NC
Model No:
30LS20P
CE
Current Rating
415 V
Contact Type
Slow
Plunger
Contact Configuration:
2NC
Model No:
30LS00P-L
CE
Current Rating
415 V
Contact Type
Slow
Plunger With Lock
Contact Configuration:
1NO1NC

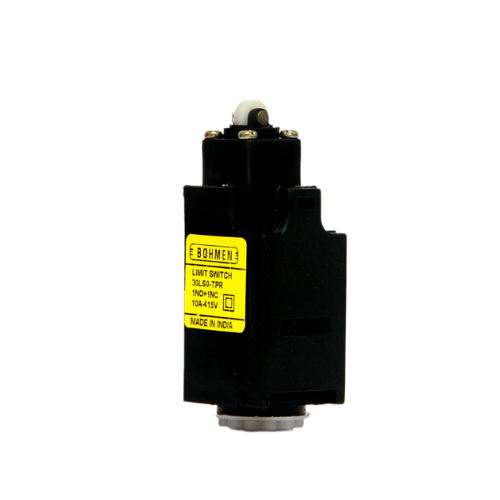

Model No:
30LS0TPR
CE
Current Rating
415 V
Contact Type
Slow
Roller Plunger
Contact Configuration:
1NO1NC

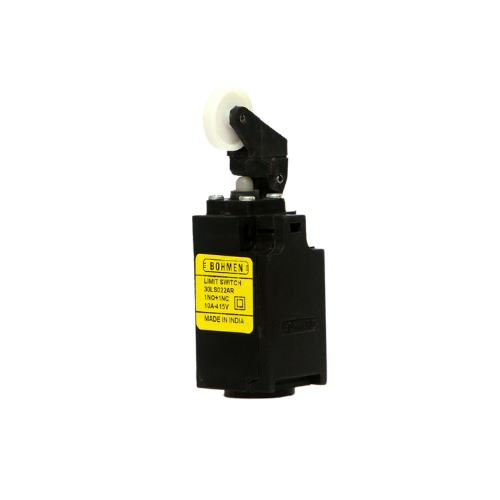

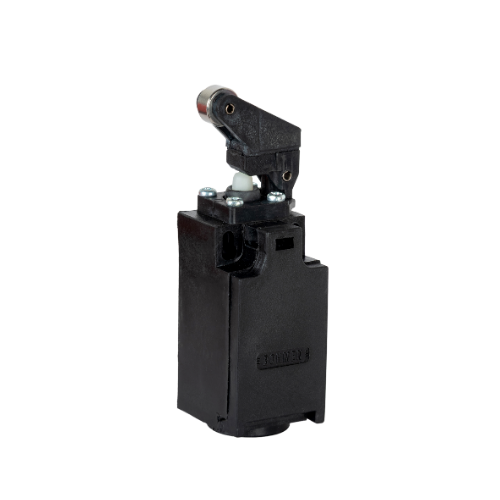

Model No:
30LS022R
CE
Current Rating
415 V
Contact Type
Slow
One Sided Roller – Adjustable
Contact Configuration:
1NO1NC

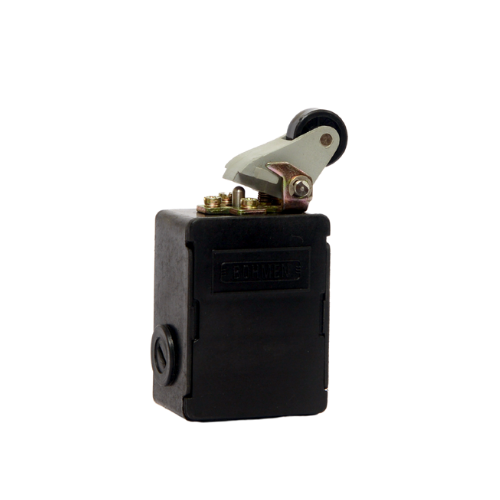

Model No:
56LS022R
CE
Current Rating
500V
Contact Type
Slow & Snap
One Sided Roller Horizontal
Contact Configuration:
1NO1NC Slow & 1NO1NC Snap
Model No:
56LS022AR
CE
Current Rating
500V
Contact Type
Slow & Snap
One Sided Roller Vertical
Contact Configuration:
1NO1NC Slow & 1NO1NC Snap

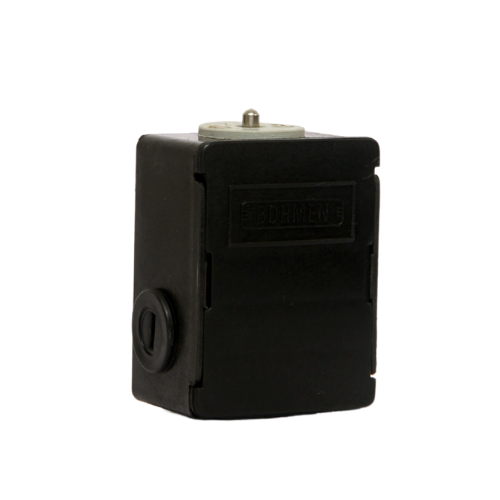

Model No:
56LSP
CE
Current Rating
500V
Contact Type
Slow & Snap
Plunger
Contact Configuration:
1NO1NC Slow & 1NO1NC Snap
Electrical Specifications
Voltage Rating
< 10 milliohms
> 200 megaohms at 1000 V DC
General Information
Slow & Snap
Certifications:
Material & Build
Material:
Aluminium die-cast
Color:
Blue / Black
Fields
Applications & Industries
Heavy Machinery Automation
Conveyor Equipment & Bulk Movement Systems
Industrial Presses & Forming Machines
Case Study
Real-World Profit Impact
Steel Coil Processing Line
Reduced unexpected downtime by 31% after replacing control contacts with 10A heavy-duty limit switches reliably.
Installed 10A heavy-duty limit switches across critical coil position sensors; fast SNAP action and robust contacts eliminated false trips, reduced maintenance, and sustained continuous production under harsh plant conditions consistently.
Features
Robust Industrial Control
Efficient Current Handling
10A rated contacts handle motor and actuator loads reliably, supporting robust control circuits without overheating.
Shock and Vibration Resistance
Dielectric Performance
Consistent Safety Signalling
Reduced Electrical Wear
Sub-10mΩ contacts minimize arcing and heat, substantially reducing contact erosion during prolonged switching cycles effectively.
Standards
Certifications & Compliance
ISO Certified
International quality management standards
CE Marking
European conformity certification
RoHS Compliant
Environmentally responsible manufacturing
FAQ
Frequently Asked Questions
What applications suit 10A Heavy-Duty Limit Switches PL SERIES best?
Ideal for motorized equipment, conveyor drives, heavy actuators, and safety interlocks requiring robust contact ratings.
Can 10A Heavy-Duty Limit Switches PL SERIES handle direct motor switching?
Yes for small motors and solenoids within 10A rating; larger motors require contactors or relays.
What does SNAP action mean for 10A Heavy-Duty Limit Switches PL SERIES?
SNAP provides fast, positive contact changeover, reducing contact chatter and improving switching reliability.
Are 10A Heavy-Duty Limit Switches PL SERIES CE certified?
Many PL SERIES variants carry CE marking; always verify specific model certifications before purchase.
How does >200MΩ insulation benefit 10A Heavy-Duty Limit Switches PL SERIES?
What maintenance schedule is recommended for 10A Heavy-Duty Limit Switches PL SERIES?
Inspect contacts and actuators periodically based on cycle frequency; high-cycle systems require more frequent checks.
Can 10A Heavy-Duty Limit Switches PL SERIES be used outdoors?
Reinforced PA6 and insulation help, but environmental sealing level must match actual outdoor exposure requirements.
How do I choose between SLOW and SNAP variants in PL SERIES?
Use SNAP for fast detection and safety; choose SLOW where gradual make/break suits the motion profile.
Are replacement actuators available for 10A Heavy-Duty Limit Switches PL SERIES?
Yes — modular actuator options allow on-site swaps to fit diverse mechanical interfaces.
What wiring considerations apply to 10A Heavy-Duty Limit Switches PL SERIES installations?
Use appropriately rated conductors and consider arc suppression or contactors when switching inductive loads near 10A.
