ML SERIES

1NO1NC SLOW

Rugged, precision micro-switches with 1NO+1NC slow-action contacts, durable die-cast body, wide temperature range, high insulation — reliable performance for industrial limit sensing and longevity.

Suitable for Industries:

Automation & Robotics Industry

Manufacturing & Assembly Lines

CNC & Machine Tools Industry

Key Feature

ML Series

1NO1NC SLOW Switches

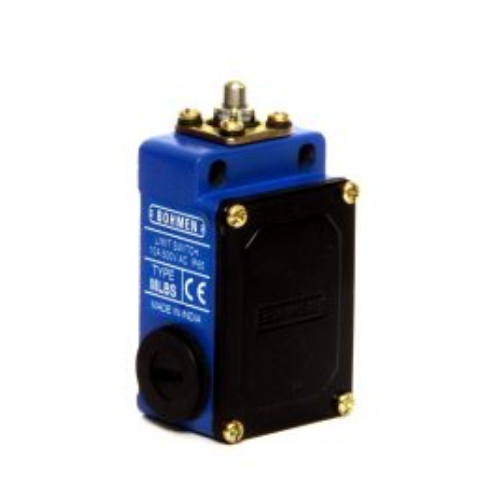

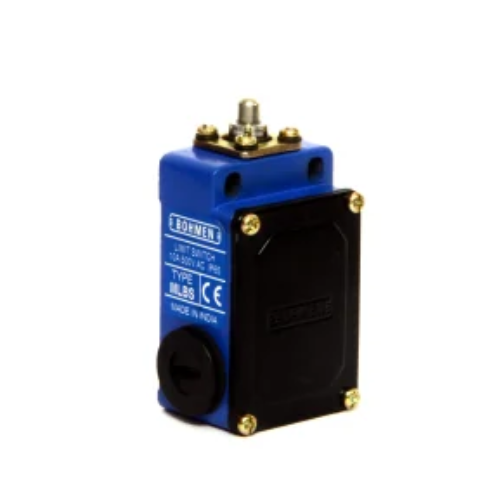

Model No:

MLB

Actuator:

Plunger

Ingress Protection:

IP65

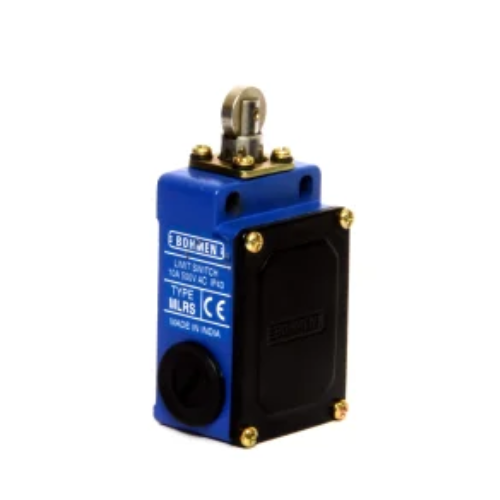

Model No:

MLR

Actuator:

Roller Plunger

Ingress Protection:

IP43

Model No:

MLRL22R

Actuator:

Big Roller Lever

Ingress Protection:

IP65

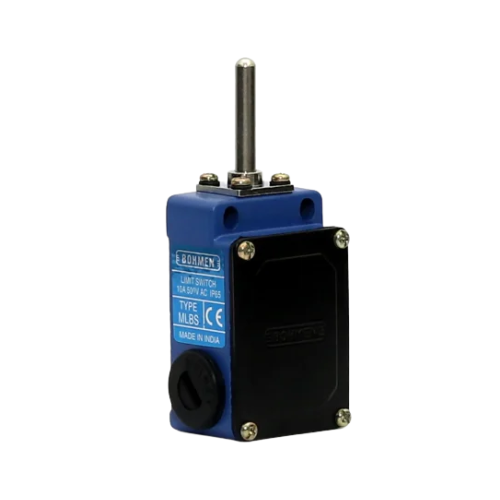

Model No:

MLBX

Actuator:

Long Plunger

Ingress Protection:

IP65

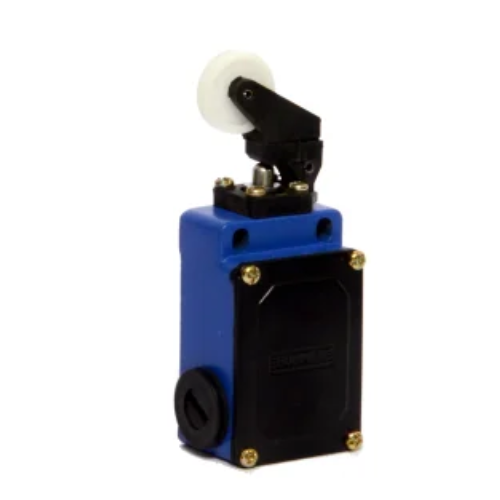

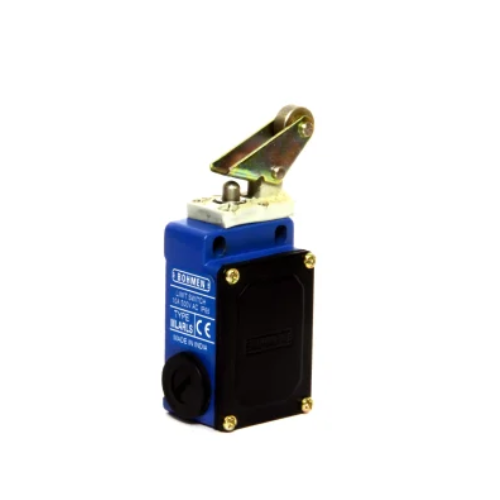

Model No:

MLARL

Actuator:

Roller Lever

Direction

Vertical

Ingress Protection:

IP65

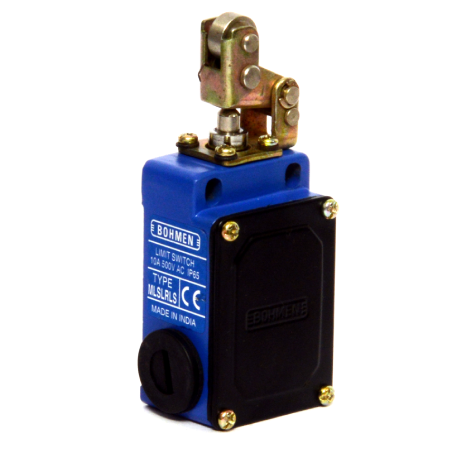

Model No:

MLSLRLS

Actuator:

Roller Plunger

Direction

Unidirectional

Ingress Protection:

IP65

Model No:

MLRL

Actuator:

Roller Lever

Actuator:

Horizontal

Ingress Protection:

IP65

Electrical Specifications

Current Rating

10A

Voltage Rating

500V

Contact Resistance:

< 20 milliohms

Insulation Resistance:

> 200 megaohms at 1000 V DC

General Information

Contact Configuration:

1 Normally Open (NO) + 1 Normally Closed (NC)

Operation:

Slow-action

Certifications:

CE Approved

Operating Temperature

–5°C to +85°C

Material & Build

Material:

Aluminium die-cast

Color:

Blue / Black

Fields

Applications & Industries

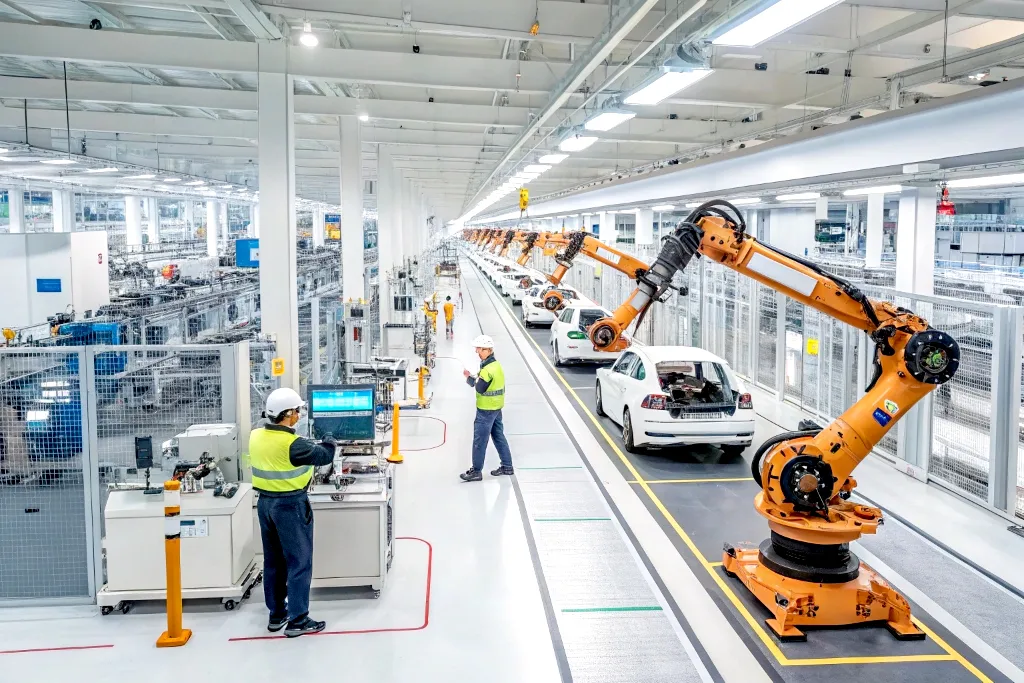

Automation & Robotics Industry

Manufacturing & Assembly Lines

CNC & Machine Tools Industry

Case Study

Real-World Profit Impact

ML Series Slow-Action Safety Positioning

CNC Metal-Cutting Machinery

Reduced spindle crash incidents by 22%, saving tooling costs and boosting machine availability significantly.

ML Series 1NO1NC slow-action switches ensured precise axis-limit detection under vibration, using aluminium die-cast durability and low-resistance contacts to deliver stable feedback, improving CNC reliability and minimizing unplanned downtime.

Features

Robust Industrial Control

Advantages that matter for your industrial operations

Durability

High-strength aluminum die-cast housing and IP-rated sealing ensure long-lasting performance even in demanding industrial environments.

Safety

Reliable NO+NC contacts with slow-action switching provide controlled, secure operation and prevent accidental equipment triggering.

Extended Service Life

Low contact resistance, strong insulation, and corrosion-resistant construction significantly extend operational lifespan with minimal wear.

Environmental Protection

IP65 protection on most models safeguards internal components from dust, water, and fluctuating temperatures for stable performance.

Versatility

Multiple actuator types—plunger, roller plunger, horizontal and vertical levers—support diverse installation needs across applications.

Standards

Certifications & Compliance

ISO Certified

International quality management standards

CE Marking

European conformity certification

RoHS Compliant

Environmentally responsible manufacturing

FAQ

Frequently Asked Questions

What is the contact configuration used in all models?

All models use 1 Normally Open (NO) + 1 Normally Closed (NC) contact configuration.

Are these limit switches suitable for industrial environments?

Yes, their aluminium die-cast body and IP-rated protection make them durable for industrial use.

Which models offer the highest protection rating?

Models with IP65 protection—MLB, MLRL, MLARL, MLSLRLS, MLRL22R, and MLBX.

What is the actuator difference between models?

Each model uses a unique actuator such as plunger, roller plunger, horizontal lever, vertical lever, etc.

What certifications do these switches have?

All models are CE approved, ensuring compliance with international safety standards.

What is the electrical rating of the switches?

They support 10A operating current and up to 500V voltage rating.

How resistant are the contacts?

Contacts have less than 20 milliohm resistance, ensuring efficient signal transmission.

Can these limit switches withstand harsh temperatures?

Yes, they operate reliably from –5°C to +85°C.

What material is used for construction?

The body is made from aluminium die-cast, offering strength and corrosion resistance.

Where can each actuator type be used?

Depends on motion needed: plungers for direct push, rollers for moving objects, lever types for angular or directional movement.
